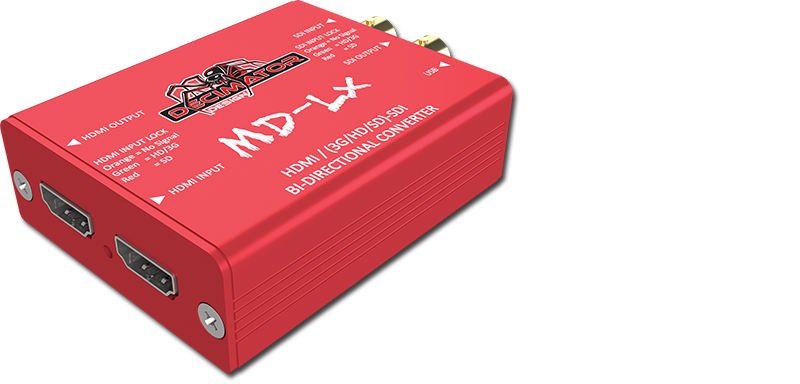

Decimator Design MD-LX HDMI/3G-SDI SMPTE Bi-Directional Converter
Decimator Design MD-LX HDMI/3G-SDI SMPTE Bi-Directional Converter
Regular price
$99.00 USD
Regular price
Sale price
$99.00 USD
Unit price
/
per
Couldn't load pickup availability
MD-LX - Overview
The Decimator Design MD-LX is a miniature and low-power HDMI/SDI bi-directional converter. This unit is the Lite version of the popular MD-HX. The MD-LX is controlled either via USB on a Mac/Windows app.
Supports 3G level A and B on the input and output, allowing conversion between 3G level A and B.
This unit also includes a Power Supply and USB Cable.
-
Features:
- Pocket Sized Design
- Supports 3G level A and B on the input and output, allowing conversion between 3G level A and B
- Features the following modes: Auto Select (Active input to all outputs or if both inputs are active SDI to HDMI and HDMI to SDI), HDMI In to SDI OUT and SDI IN to HDMI Out, SDI In to HDMI and SDI OuT, HDMI In to HDMI and SDI Out
- Supports 3G Level A and B and allowing for conversion between both
- USB provides for power, control and firmware upgrades
- Low power enabling operation from the USB
- Includes a Power Supply and USB Cable
-
Specifications:
-
SDI Formats:
3G-A or 3G-B:SMPTE 424M@2.97 and 2.967Gb/s
1080p@60/59.94/50Hz HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
1080i@60/59.94/50Hz
1080p/psf@30/29.97/25/24/23.98Hz
720p@60/59.94/50/30/29.97/25/24/23.98Hz SD:SMPTE 259M@270Mb/s
625i50 (PAL)
525i59.94 (NTSC) -
HDMI Formats:
1080p@60/59.94/50/30/29.97/25/24/23.98Hz
1080i@60/59.94/50Hz
720p@60/59.94/50/30/29.97/25
625i50 (PAL), 525i59.94 (NTSC) -
Inputs:
1x HDMI Type A
1x (3G/HD/SD)-SDI -
Outputs:
1x HDMI Type A
1x (3G/HD/SD)-SDI
Micro USB for power, control and firmware updates - Power: USB Power +4.4V to +5.25V DC, Uses under 2.5 Watts
- Dimensions: 2.4 x 2.9 x 0.9" (60 x 73.7 x 23mm)
-
SDI Formats:
-
Item Includes:
- 1x Decimator MD-LX Converter
- 1x Power Supply
- 1x USB Cable
